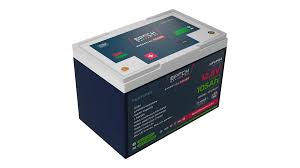

12V 105Ah - Group 24 - Heated & Bluetooth LiFePO4 Battery
EPOCH
Description
Attributes
- LiFePO4 Chemistry - Deep Cycle Battery
- HEATED - Internal heating allows for charging in sub-zero conditions
- BLUETOOTH - iOS and Android Apps
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (4) in Parallel up to 420Ah
- 4,000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Weight: 22.1 (LBS)
DIMENSIONS
Length: 10.25 (inches)Width: 6.75 (inches)Height: 9 (inches)
Specifications
CONFIGURATION
Cell Configuration: 4S1PChemistry: LiFePO4
CURRENTAh Capacity: 105Ah
Max Continuous Discharge Amps: 105A
Max Charge Current Amps: 100A
Max Discharge Peak Current Amps: 200A (10 Seconds)
Series | Parallel: Max (4) in Series,
Max (4) in Parallel - 4S4PVOLTAGE
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
TEMPERATURE
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
